Квадрокоптер DJI Phantom 5.8G

DJI Phantom 5.8G фото
— производитель: DJI (DJI)
— модель: Phantom 5.8G
— квадрокоптер
— управление: Wi-Fi и радиоканал
— скорость полета до 10 м/c
— время полета до 15 мин
— GPS
— в наличии
— артикул COP0-6390Мы рекомендуем этот квадрокоптер нашим посетителям

Фотографии DJI Phantom 5.8G

Описание и характеристики DJI Phantom 5.8G

Сегодня у нас на обзоре квадрокоптер DJI Phantom 5.8G. Эта замечательная штука у меня уже 4 месяца, хочу поделиться с вами моими положительными впечатлениями, которые накопились за это время. Процесс распаковки к сожалению я не снимал, можно сказать, в тот момент я уже мысленно летал на нем во дворе, осуществив заветную детскую мечту, и о сьемке напрочь забыл. Управление этого чуда техники осуществляется с удобного и (главное) понятного пульта управления по Wi-Fi и радиоканалу, для людей далеких от техники в комплекте есть подробная инструкция, с которой несложно разобраться после 2-3 попыток взлететь. По времени и дальности полета на одном заряде АКБ мнения расходятся, в любом случае они зависят от многих внешних факторов и очень часто не совпадаю с заявлеными в характеристиках. В двух словах: давно мечтал о квадрокоптере и мечта сбылась. Детальный обзор и видео о полете DJI Phantom 5.8G смотрите ниже.
- заказ рекламы на моём канале .
- группа ВКlinks on this quad:
Features:
High Performance Camera:
The Phantom 2 Vision's camera is extremely high quality. It shoots full HD video at 1080p30/60i and takes 14 megapixel still photos.
Camera Tilt Control:
During flight, the camera is stabilized on the tilt axis. Tilt control can be remotely controlled through the App making it simple and easy to use.
CAMERA PARAMETER SETTINGS:
Camera settings can be adjusted using your mobile device such as Picture Quality,
ISO settings, exposure compensation, white balance, RAW or JPEG
format wirelessly through the App.
WI-FI Connection:
Monitor real-time flight data along with live camera view up to a distance of 300m with a Wi-Fi wireless connection to your mobile device.
Album Synchronization:
Synchronize the camera's SD card content through Wi-Fi directly with your phone's photo album eliminating the requirement to connect to a PC.
Sharing:
Share your timeless memories directly from the DJI Vision Mobile App.
Precision Flight and Stable Hovering:
The integrated GPS auto-pilot system offers position holding, provides altitude lock along with stable hovering giving you constant stable flights so you can focus on getting the shots.
Radar Positioning & Return Home:
The flight radar can display the current position of the Phantom 2 Vision in relation to the pilot.
Exceed the 300 meter control range and you'll trigger the 'Return-to-Home' feature which will automatically fly the Phantom 2 Vision back and safely land at its takeoff point.
Onscreen Real-Time Flight Parameters:
Keep track of the current flight status with the onscreen display overlay.
Long Flight Time:
The high capacity, high performance 5200mAH Lithium Polymer battery offers up to 25 minutes of flight time. Built in intelligence provides battery capacity data, over charge/discharge protection, as well as maintenance reminders making the battery extremely safe and reliable.
Integrated Smart Battery:
Integrated battery compartment allows battery changes in a matter of seconds.
Self Tightening Propellers
Package Included:
1 x DJI Phantom 2 Vision RC Quadcopter

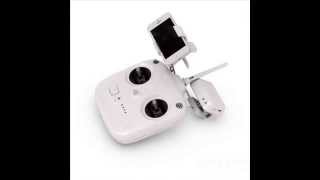

1 x 5.8G transmitter
1 x Wifi repeater
1 x Smartphone holder
1 x Charger
1 x Battery
1 x Driver Screw
1 x Manuallink:
Spare parts:
Description:
Brand Name: DJI
Item Name: Phantom 2 Vision RC Quadcopter
Weight: about 1160g
Dimensions (cm): 29 x 29 x 18
Flight time: about 25mins

Aircraft Battery Flight Load Bearing Hovering Accuracy
(GPS Mode) Max Yaw Angular Velocity
5200mAh Lipo 1160g Vertical:0.8m
Horizontal: 2.5m 200°/s
Max Tilt Angle Max Ascent / Descent Speed Max Flying Speed Diagonal Wheelbase
35° 6m/s 10m/s 350mm
Tilting Range of Gimbal
0°-60°
Transmitter Operating Frequency Communication Distance
(open area) Receiving Sensitivity
(1%PER) Transmitting Power
5.8 GHz ISM CE: 300m; FCC: 500m -93dBm CE: 25mw; FCC: 125mw
Working Current/Voltage Battery
80 mA@6V 4 AA Batteries
Camera Resolution FOV Sensor size Functions
14 Megapixels 140 °/ 120° / 90 ° 1/2.3 Support of multi-capture,
continuous capture
and timed capture
Support of HD Recording
(1080p30/1080i60)
Supports of both RAW
and JPEG picture format
Range
Extender Operating Frequency Communication Distance
(open area) Transmitting Power Power Consumption
2412-2462MHz 300m =17dBm 1.5W
DJI VISION
App Supportedmobile devices Functions
iOS version 6.0 or above
Android system version 4.0 or above Real-time video transmission
and FPV flight
Camera remote controland setting
Albumsynchronization and share
General Features Aircraft and camera integration, light weight, multi-functional
Camera remote-control via DJI VISION app on mobile device
Wi-Fi communication distance increased to 300m via Range Extender
Built-in anti-vibration gimbal with self-stabilizing function
Low-voltage protection
Locate aircraft position with virtual radar overlay via mobile device
Gimbal Tilt Range
Supports multi-capture, continuous capture, and timed capture
Supports HD Video Recording (1080p30/1080i60)
Support both RAW and JPEG picture formats

Features:
High Performance Camera:
The Phantom 2 Vision's camera is extremely high quality. It shoots full HD video at 1080p30/60i and takes 14 megapixel still photos.
Camera Tilt Control:
During flight, the camera is stabilized on the tilt axis. Tilt control can be remotely controlled through the App making it simple and easy to use.
CAMERA PARAMETER SETTINGS:
Camera settings can be adjusted using your mobile device such as Picture Quality,
ISO settings, exposure compensation, white balance, RAW or JPEG
format wirelessly through the App.
WI-FI Connection:
Monitor real-time flight data along with live camera view up to a distance of 300m with a Wi-Fi wireless connection to your mobile device.
Album Synchronization:
Synchronize the camera's SD card content through Wi-Fi directly with your phone's photo album eliminating the requirement to connect to a PC.
Sharing:
Share your timeless memories directly from the DJI Vision Mobile App.
Precision Flight and Stable Hovering:
The integrated GPS auto-pilot system offers position holding, provides altitude lock along with stable hovering giving you constant stable flights so you can focus on getting the shots.
Radar Positioning & Return Home:
The flight radar can display the current position of the Phantom 2 Vision in relation to the pilot.
Exceed the 300 meter control range and you'll trigger the 'Return-to-Home' feature which will automatically fly the Phantom 2 Vision back and safely land at its takeoff point.
Onscreen Real-Time Flight Parameters:
Keep track of the current flight status with the onscreen display overlay.
Long Flight Time:
The high capacity, high performance 5200mAH Lithium Polymer battery offers up to 25 minutes of flight time. Built in intelligence provides battery capacity data, over charge/discharge protection, as well as maintenance reminders making the battery extremely safe and reliable.
Integrated Smart Battery:
Integrated battery compartment allows battery changes in a matter of seconds.
Self Tightening Propellers
Package Included:
1 x DJI Phantom 2 Vision RC Quadcopter
1 x 5.8G transmitter
1 x Wifi repeater
1 x Smartphone holder
1 x Charger
1 x Battery
1 x Driver Screw

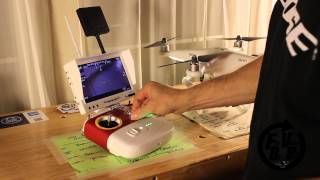

1 x Manualdji phantom 5.8 ghz version unboxing and setuplink:
Description:
Brand Name: DJI
Item Name: Phantom 2 Vision +
Aircraft Supported Battery DJI 5200mAh LiPo Battery
Weight (Battery & Propellers included) 1242g
Hover Accuracy (Ready to Fly) Vertical: 0.8m; Horizontal: 2.5m
Max Yaw Angular Velocity 200°/s
Max Tiltable Angle 35°
Max Ascent / Descent Speed Ascent: 6m/s; Descent: 3m/s
Max Flight Speed 15m/s (Not Recommended)
Diagonal motor-motor distance 350mm
Gimbal Working Current Static : 750mA; Dynamic : 900mA
Control Accuracy ±0.03°
Controllable Range Pitch : -90°-0°
Maximum Angular Speed Pitch : 90°/s
Camera Operating Environment Temperature 0℃-40℃
Sensor size 1/2.3"
Effective Pixels 14 Megapixels
Resolution 4384×3288
HD Recording 1080p30
Recording FOV 110° / 85°
Remote Controller Operating Frequency 5.728 GHz-5.85 GHz
Communication Distance (open area) CE Compliance: 400m; FCC Compliance: 800m
Receiver Sensitivity (1%PER) -93dBm
Transmitter Power CE Compliance: 25mW; FCC Compliance: 100mW
Working Voltage 80 mA@6V
Battery 4 AA Batteries
Range Extender Operating Frequency 2412-2462MHz
Communication Distance (open area) 500-700m
Transmitter Power 20dBm
Power Consumption 2W

Features:
3-axis camera stabilization:
A built-in high precision 3-axis camera stabilization system brings a whole new level of smoothness to your aerials and gives you total creative freedom in the sky
Precision flight and stable hovering:
The integrated GPS auto-pilot system offers position holding, altitude lock and stable hovering, giving you constant stable flight so you can focus on getting the shots.
High performance camera:
The Phantom 2 Vision+ carries an extremely high quality camera and a 4GB micro SD card. It shoots full HD video at 1080p 30, 720p 60 for clean slow motion and takes 14 megapixel stills.
Camera tilt control:
Tilt the camera as you fly, so you can create the graceful moving shot you see in your mind.
Film straight down:
Point the camera straight down for a totally unique view of your world
Adobe lens profile support:
An Adobe lens profile for barrel distortion removal is available for the DJI Phantom 2 Vision+ camera.
It is available as standard in the latest versions of Adobe Lightroom and Adobe Camera Raw for Photoshop
Camera parameter settings:
Camera settings including Picture Quality, ISO, Exposure Compensation, White Balance, and capture format can be adjusted through the Vision app.
Album synchronization:
Beam photos and videos from the Vision+ straight to your phone using Wi-Fi. No computer required.
No fly zones feature:
In order to increase flight safety and prevent accidental flights in restricted areas, the new firmware for the Phantom 2 series includes a No Fly Zone feature.
These zones have been divided into two categories: A and B. For a full explanation of the difference between the categories and view a full list of places included, please click here.
English Manual,Please Click Here!
Package Included:
Package Included:
1 x DJI Phantom 2 Vision + RC Quadcopter
1 x FPV 5.8G transmitter
1 x 5200mAh LiPo Battery
1 x USB cable
1 x Charger
1 x Power cables
1 x 4GB micro-SD card
4 x Spare dampers
1 x Spare screw set
1 x Tool set
1 x English user manual
